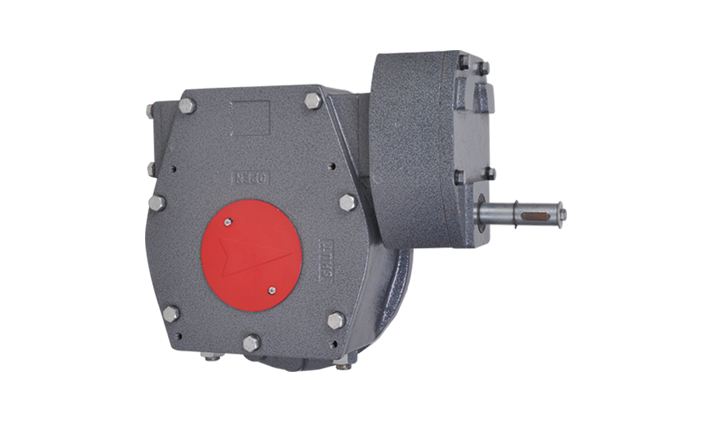

M00 Double-Stage Manual Operation
- Compact & Lightweight: Features a small size and light weight for easy handling and installation.
- High Output Torque: Delivers large output torque for powerful performance.
- Rational Structure: Designed with a reasonable structure for enhanced reliability.
- Self-Holding Capacity: Provides reliable self-holding capability to ensure secure operation.
- Optional Locking Device: Can be equipped with an additional locking device to prevent unauthorized access.
- Suitable for 90° Rotation Valves: Ideal for controlling butterfly valves, ball valves, plug valves, and other valves requiring 90° rotation.
Description
Description

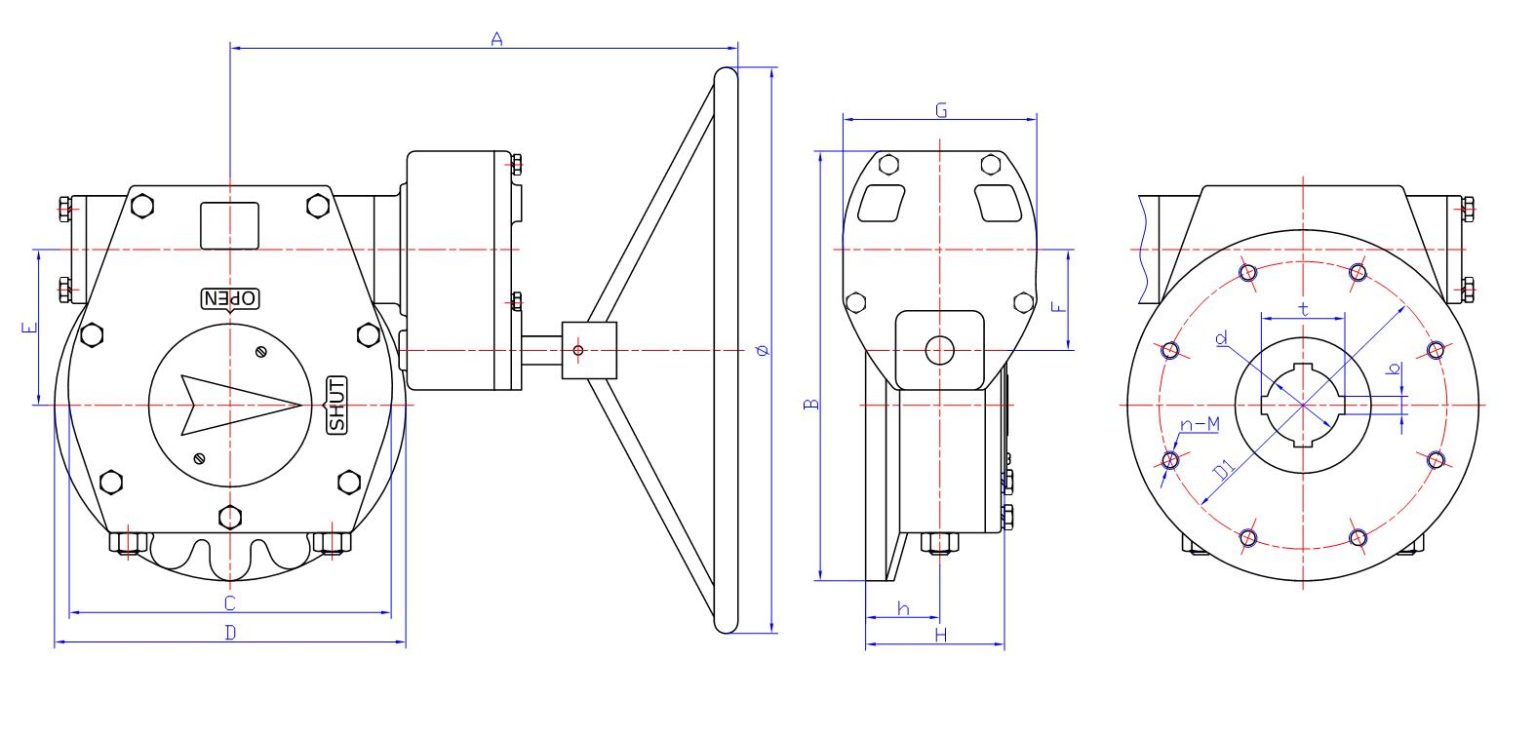

Dimensions Table
Model | d | b | t | D1 | n-M | A | B | C | D | E | F | G | Φ | H | h |
M16B | 55 | 16 | 63.6 | 165 | 4-M20 | 403 | 310 | 250 | 210 | 124 | 83 | 162 | 500 | 113 | 57 |
M36/S5 | 65 | 16 | 73.6 | 254 | 8-M20 | 448 | 380 | 286 | 310 | 138 | 89 | 171 | 500 | 130 | 73 |
M50/S5 | 75 | 20 | 84.8 | 254 | 8-M16 | 480 | 446 | 355 | 355 | 181 | 89 | 171 | 500 | 160 | 80 |
M50/D12 | 85 | 22 | 95.8 | 254 | 8-M16 | 555 | 440 | 355 | 355 | 181 | 151 | 152 | 600 | 160 | 80 |
M60/D12 | 120 | 32 | 134.8 | 298 | 8-M20 | 616 | 528 | 463 | 415 | 237 | 151 | 152 | 700 | 165 | 82 |
M65/D12 | 120 | 32 | 134.8 | 356 | 8-M30 | 648 | 572 | 558 | 415 | 282 | 151 | 152 | 700 | 172 | 84 |
M70/D18 | 120 | 32 | 134.8 | 356 | 8-M30 | 686 | 657 | 610 | 475 | 309 | 192 | 193 | 700 | 225 | 107 |
M75/D18 | 150 | 36 | 166.8 | 406 | 8-M36 | 706 | 697 | 692 | 475 | 349 | 192 | 193 | 700 | 231 | 110 |
M80/D21 | 150 | 36 | 166.8 | 406 | 8-M36 | 826 | 760 | 760 | 560 | 391 | 264 | 266 | 800 | 270 | 130 |
M91/D28 | 180 | 45 | 200.8 | 483 | 12-M36 | 909 | 1003 | 968 | 686 | 491 | 298 | 338 | 800 | 300 | 138 |
Technical Parameters
| Model | Rated Torque (N·m) | Ratio | Input Torque (N·m) | Hole Size Max (mm) | Mounting Flange (min/max) | Handwheel (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| M16B | 4400 | 170:1 | 130 | 75 | F14 \ F16 | 500 | 44 |
| M36/S5 | 8000 | 210:1 | 180 | 85 | F16 \ F25 | 500 | 66 |
| M50/S5 | 11000 | 250:1 | 180 | 110 | F25 \ F30 | 500 | 109 |
| M50/D12 | 16000 | 612:1 | 190 | 110 | F25 \ F30 | 600 | 122 |
| M60/D12 | 24000 | 720:1 | 220 | 160 | F30 \ F35 | 700 | 188 |
| M65/D12 | 35000 | 882:1 | 230 | 160 | F30 \ F35 | 700 | 255 |
| M70/D18 | 50000 | 1360:1 | 320 | 160 | F30 \ F35 \ F40 | 700 | 370 |
| M75/D18 | 70000 | 1430:1 | 320 | 180 | F35 \ F40 | 700 | 440 |
| M80/D21 | 100000 | 1800:1 | 320 | 180 | F35 \ F40 \ F48 | 800 | 700 |
| M90/D28 | 160000 | 2430:1 | 320 | 240 | F48 \ F60 | 800 | 1100 |
