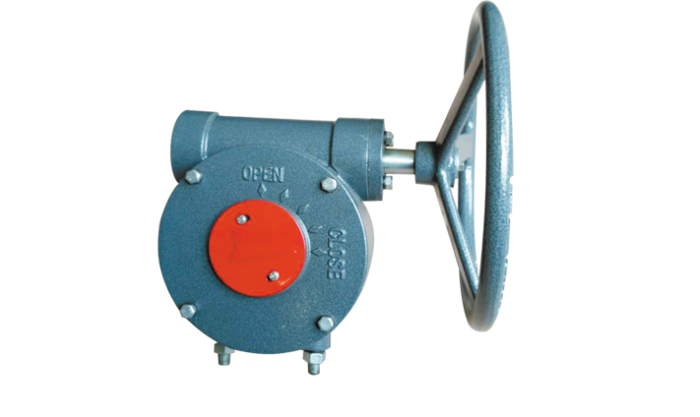

Model II Single-Stage Drive Gearbox
Description
Description
This product worm gear and worm drive set is used. Strong in output for installing bearing at the both end of the worm, the worm and stem is integrated. The product is characterized by large output torque ratinal structure and having reliabiy self-hold capacity. Sutable to control the 90° rotay buttefly valve, ball vale, cock valve, ect.

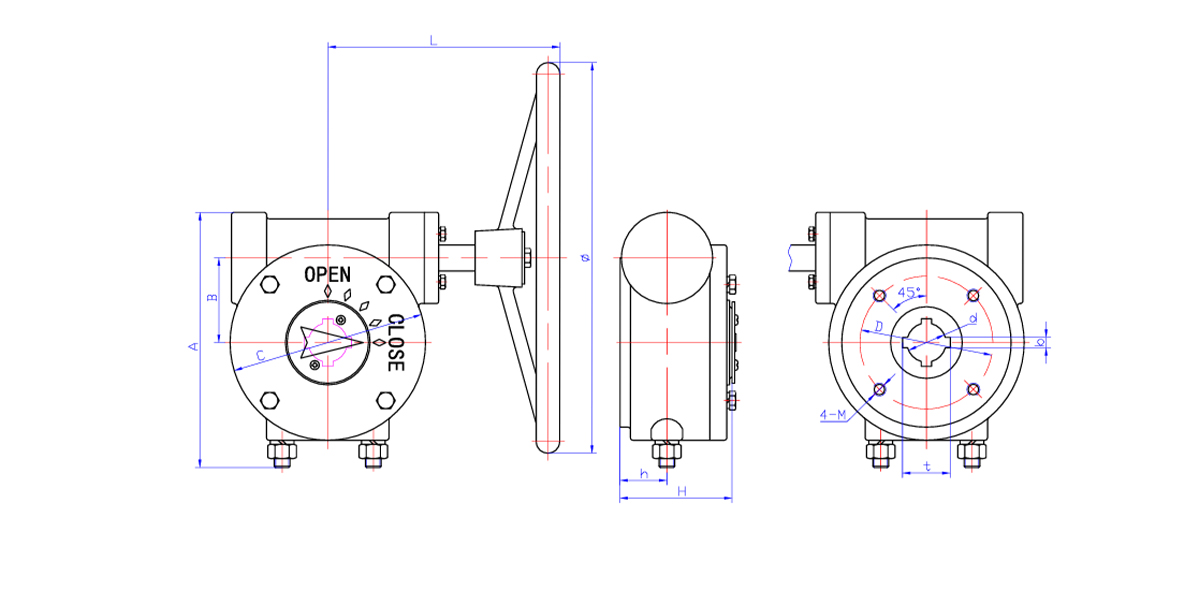

Outline Dimensions Table
| Model | d | b | t | D1 | 4-M | A | B | C | L | Φ | H | h |
| LX1002 | 20 | 6 | 25.6 | 102 | 4-M10 | 173 | 61 | 129 | 159 | 220 | 74 | 32 |
| LX1004 | 30 | 8 | 36.6 | 102 | 4-M10 | 196 | 65 | 150 | 178 | 300 | 86 | 36 |
| LX1401 | 35 | 12 | 41.6 | 140 | 4-M16 | 243 | 87 | 187 | 194 | 300 | 101 | 46 |
Technical Parameters
| Model | Torque (N·m) | Ratio | Input Torque (N·m) | Weight (kg) | Remarks |
|---|---|---|---|---|---|
| LX1002 | 400 | 47:1 | 30 | 6.6 | |
| LX1004 | 750 | 40:1 | 65 | 11 | |
| LX1401 | 1700 | 47:1 | 120 | 18 |
