1, Spring return normal close (Normal type) (Suitable for steam and gas)
2, Double action (Without spring, also support low pressure under the seat when valve closed)
Technical Data
Joint size: DN10-DN65
Thread: BSP. BSPT. NPT. NPTF
Valve body: CF8/CF8M
Actuator: CF8
Seat seals: PTFE/RTFE
Stem seals: PTFE/FKM
Piston seals: FKM/NBR
Applicable medium: Water,liquid, neuteral gas, water steam, slight corrosive gas and liquid
Temperature range: -10’C to +180*C
Ambient temperature: -10 ‘C to + 60*C
Viscasity: max 600mm*/s
Installation: Any position
Controlling medium: Air or neuteral gas
Controlling pressure range: 0.3-1MPa

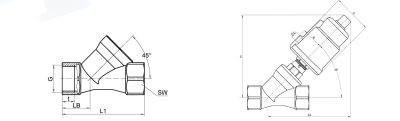

Installation Size (mm)
Type
Actuator
D
R
G1
H/LA
L1
LB
SW
G
T
DN10
40
50.5
27
G1/8
108
74
25.5
22
3/8″
10.5
DN15
40
50.5
27
G1/8
108
74
25
25
1/2″
13.5
DN20
40
50.5
27
G1/8
120
84
29
31
3/4″
14.5

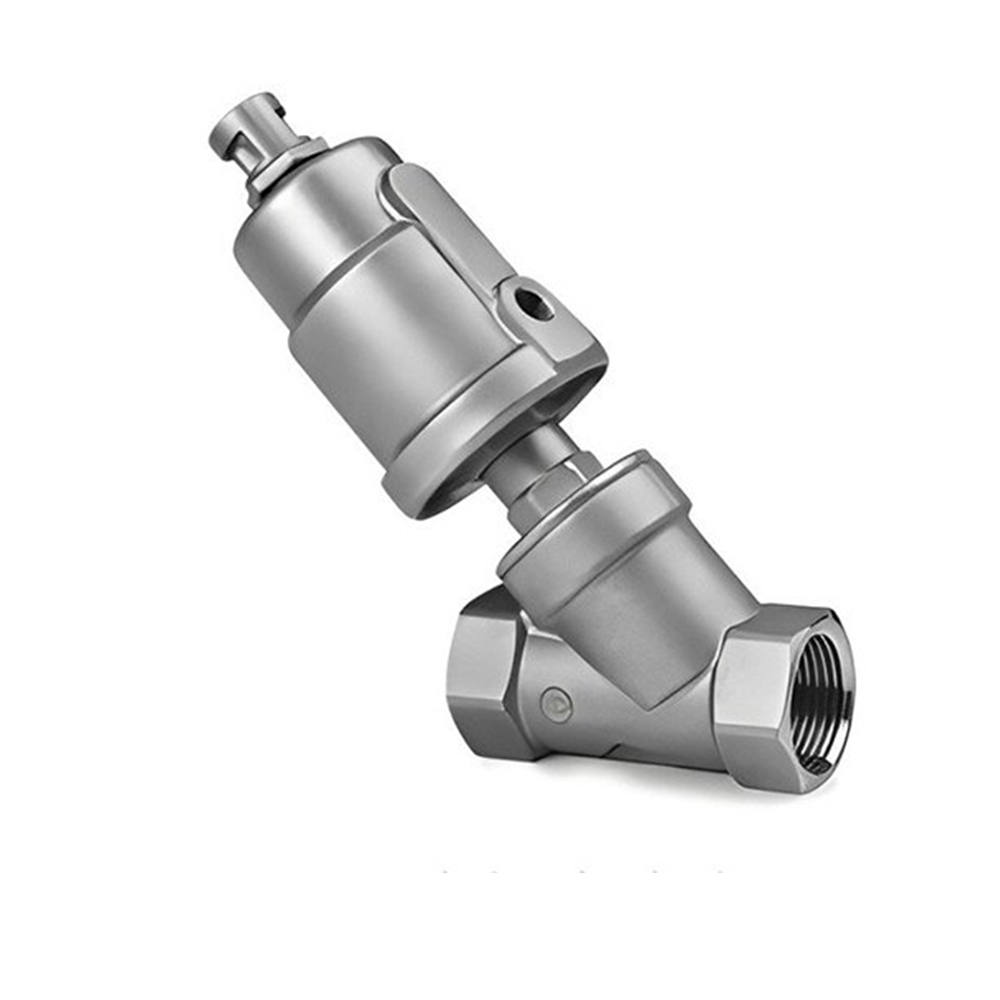

Stainless Steel Angle Seat Valve Type F32
Technical Data
Size
End
Orifice (mm)
Actuator (mm)
Kv (m³/h)
Max working pressure (Mpa)
Pressure range (Mpa)
Min control pressure (Mpa)
DN10
3/8″
13
40
4.7
1.6
0-1.6
≥0.4
DN15
1/2″
13
40
4.7
1.6
0-1.6
≥0.4
DN20
3/4″
18
40
9.5
1.6
0-1.6
≥0.3-0.4
Stainless Steel Angle Seat Valve Type F32
Connection Type: Thread
Size
Actuator
H1
F32-H
F32-L
A1
F32-H
F32-L
L1
t
G
G1
SW
ΦB
R
DN10
32
105
94
115
105
68
10
3/8″
G1/8
23
40
27
DN15
32
105
94
117
107
68
11.5
1/2″
G1/8
27
40
27
DN20
32
108
97
119
110
75
14
3/4″
G1/8
32
40
27
Parameter
Specification
Medium temperature
-10~180℃
Ambient temperature
-10~60℃
Max viscosity
600mm²/s
Mounting position
Any
Applicable medium
Water, neutral gas, liquid, oil, slight corrosive gas and liquid, water stream
Installation size (mm)
Type
Actuator
D
R
G1
H/LA
L1
LB
SW
G
T
DN10
40
50.5
27
G1/8
108
74
25.5
22
6-KT
3/8"
DN15
40
50.5
27
G1/8
108
74
25.5
25
6-KT
1/2"
DN20
40
50.5
27
G1/8
120
84
29
31
6-KT
3/4"
