Description

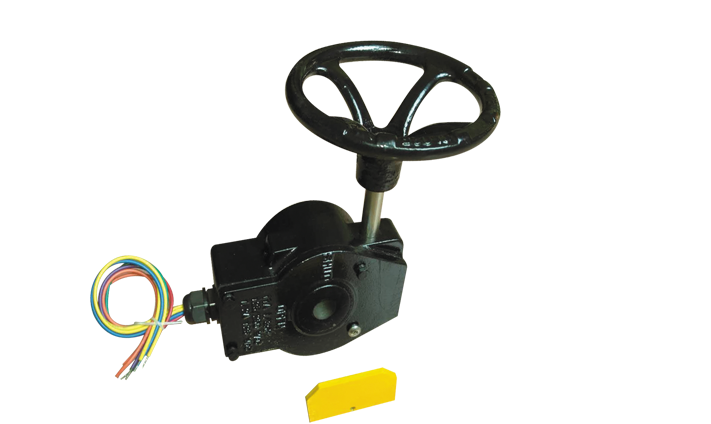

This product is in accordance with the UL/FM certification requirements，It is based on ordinary actuator, increase the micro switch, can provide to remote switch signal, indicating the valve switch state, The switches output signal when the valve will full open.
Technical Parameters

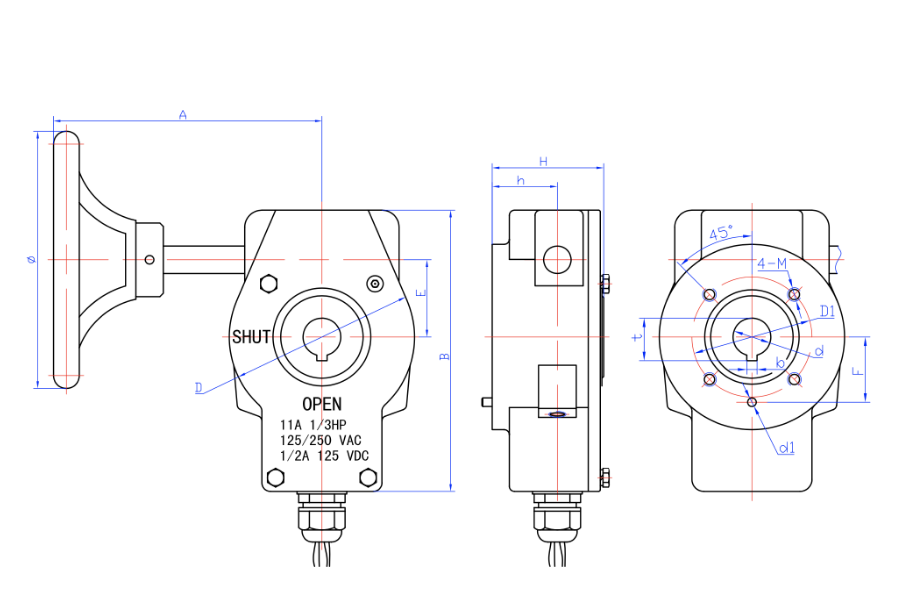

| Model | Torque (N·m) | Ratio | Metric System | British System | d | b | t | D1 | 4-M | A | B | D | E | Φ | H | h | F | d1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YC24 | 270 | 24:1 | 50-65 | 2″-2.5″ | 16 | 3 | 17.4 | 70 | 4-M8 | 157 | 164 | 108 | 45 | 150 | 65 | 38 | 38 | 5 |
| 80-100 | 3″-4″ | 16 | 5 | 18.3 | 70 | 4-M8 | 157 | 164 | 108 | 45 | 150 | 65 | 38 | 38 | 5 | |||
| 150 | 6″ | 22 | 6 | 24.8 | 102 | 4-M10 | 242 | 200 | 155 | 63 | 300 | 77 | 44 | 52.3 | 5 | |||
| YC30 | 750 | 30:1 | 200 | 8″ | 26 | 8 | 29.3 | 102 | 4-M10 | 242 | 200 | 155 | 63 | 300 | 77 | 44 | 52.3 | 5 |
| 250-300 | 10″-12″ | 3 | 8 | 33.3 | 102 | 4-M10 | 242 | 200 | 155 | 63 | 300 | 77 | 44 | 52.3 | 5 |
