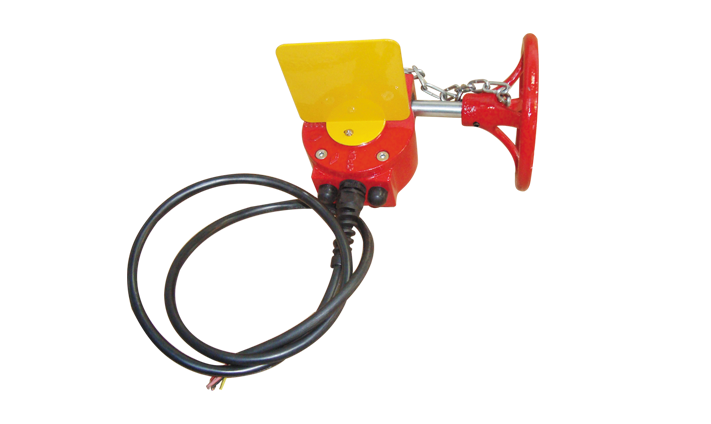

APSAD Approval Gearbox With Switching Signal

APSAD Certification Compliance: Designed to meet APSAD certification requirements for quality and safety.
Enhanced Gearbox: Based on a standard Gearbox with an added micro switch.
Remote Switch Signal: Capable of providing remote switch signals to indicate valve switch status.
Dual Position Indication: Two switches output signals when the valve is fully open or fully closed.

Description

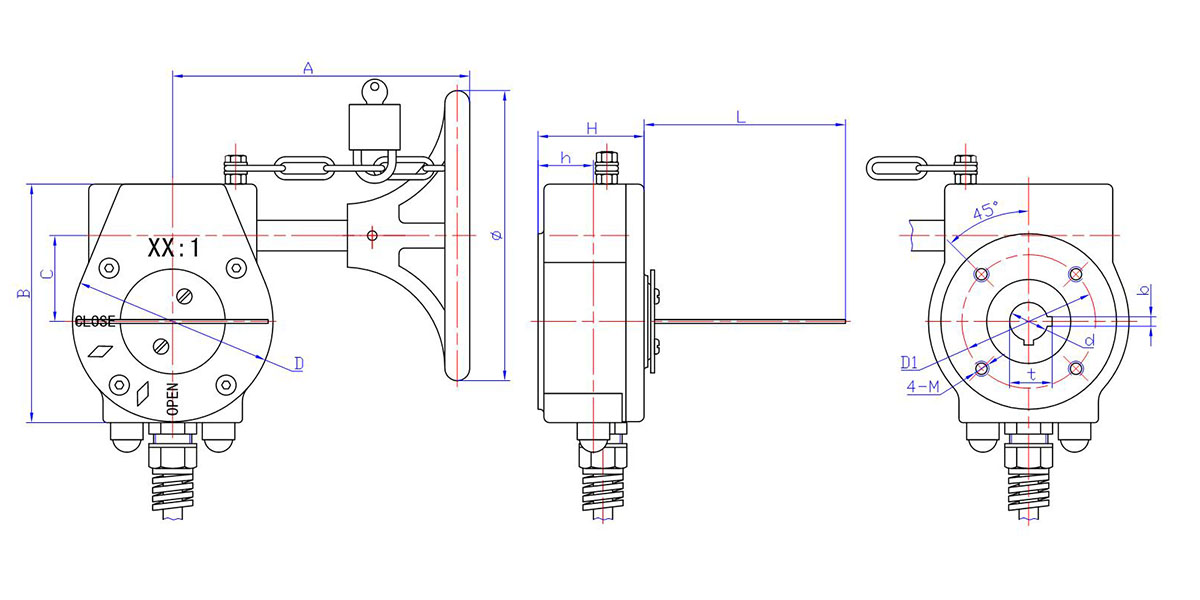

Model	Max Torque (N·m)	Ratio	Available Opening of Butterfly Valve (Metric System)	Available Opening of Butterfly Valve (British System)	d (mm)	b (mm)	t (mm)	D1 (mm)	Bolts (4-M)	A (mm)	B (mm)	C (mm)	D (mm)	Φ (mm)	H (mm)	h (mm)	L (mm)
3D-15	170	24:1	50-80	2″–3″	12.7	3	14.1	70	4-M8	156	125	45	105	150	58	29	106
3D-15	100	24:1	100	4″	15.9	5	18.2	70	4-M8	156	125	45	105	150	58	29	106
3D-30	250	30:1	125-150	5″–6″	19.05	5	21.35	70	4-M8	240	167	63	142	300	70	35	106
3D-50	750	30:1	200	8″	25.4	5	24.5	102	4-M10	240	167	63	142	300	70	35	106
3D-50	250	30:1	250	10″	28.6	8	31.9	102	4-M10	240	167	63	142	300	70	35	106
3D-120	1200	50:1	300-350	12″–14″	31.8	8	35.1	125	4-M12	229	190	78	156	300	74	38	107
