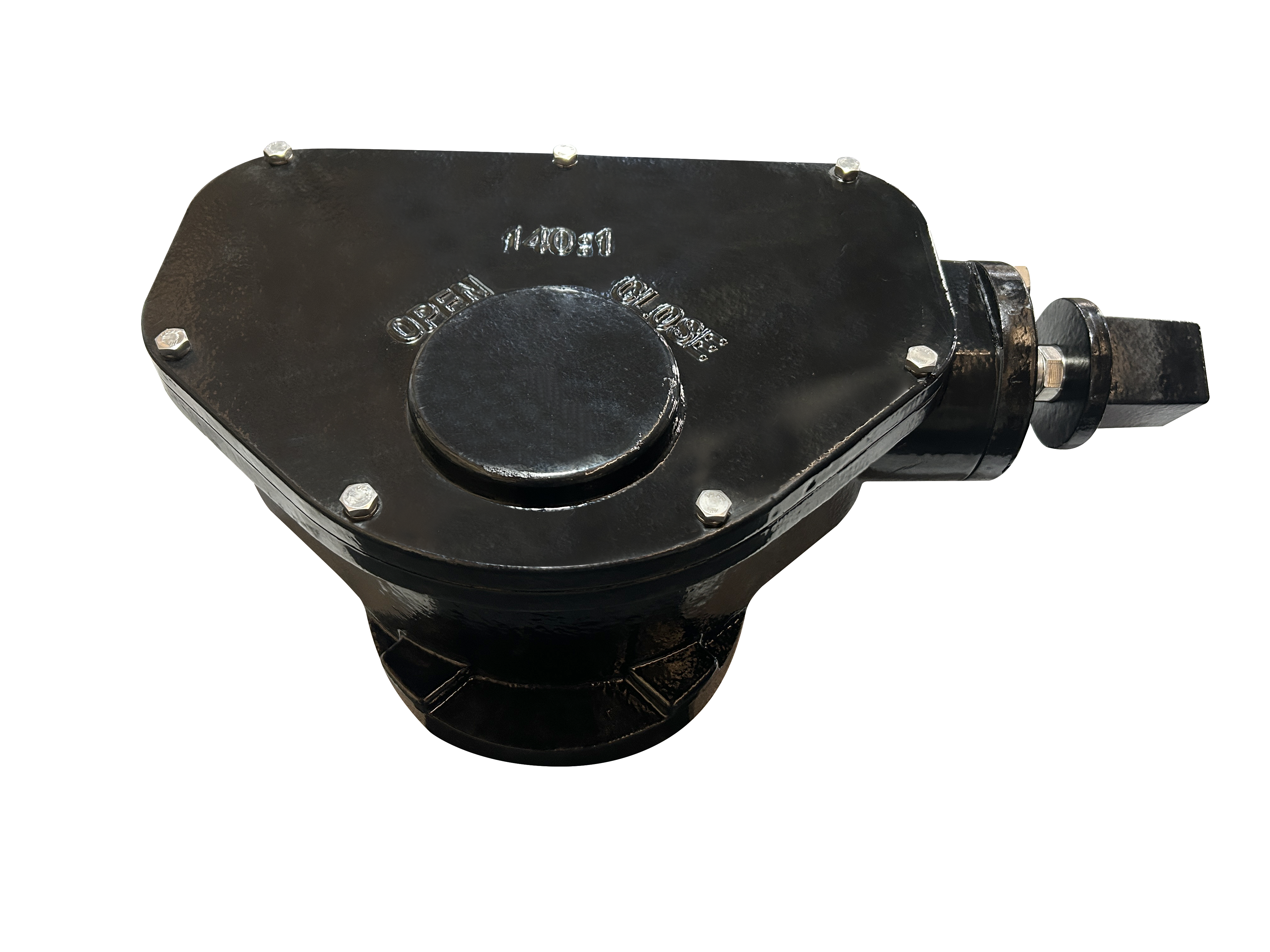

Travelling Nut Drive Device
- Screw Nut & Shifting Fork Transmission: Adopts a screw nut and shifting fork transmission method for efficient performance.
- Reasonable Structure: Engineered with a rational structure for enhanced reliability.
- High Output Torque: Delivers large output torque for robust operation.
- Reliable Self-Locking: Ensures secure and dependable self-locking.
- Ideal for 90° Rotation Valves: Suitable for the control of butterfly valves, ball valves, plug valves, and other valves with 90° rotation.
Description
Description
This product adopts a screw nut and shifting fork transmission method, with a reasonable structure, high output torque, and reliable self-locking. It is applicable to the control of butterfly valve, ball valve, cock valve and other valves with 90 ° rotation.

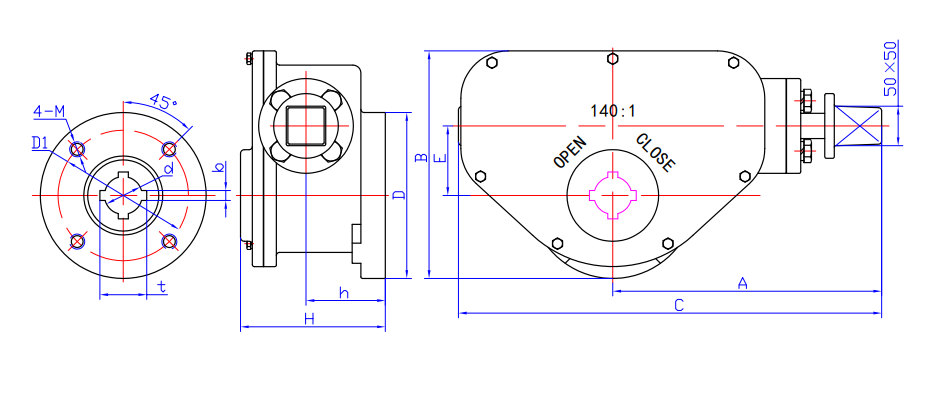

Outline Dimensions Table
| Model | d (mm) | b (mm) | t (mm) | D1 (mm) | 4-M | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | H (mm) | h (mm) | |||||||
| MS60 | 35 | 8 | 42.4 | 125 | 4-M12 | 216 | 168 | 318 | 153 | 37.5 | 109.5 | 60 | |||||||
| MS80 | 35 | 8 | 42.4 | 125 | 4-M12 | 241 | 186 | 362 | 153 | 51 | 128.5 | 71.5 | |||||||
| MS140 | 47.7 | 12.7 | 58.9 | 165 | 4-M20 | 341 | 288 | 536 | 210 | 88 | 184 | 100.5 | |||||||
| MS200 | 57.2 | 12.7 | 68.8 | 165 | 4-M20 | 383 | 391 | 624 | 300 | 125 | 188 | 101 |
Technical Parameters
| Model | Torque (Nm) | Ratio | Input (Nm) | BORE max (mm) | Flange (min/max) |
|---|---|---|---|---|---|
| MS60 | 600 | 60:1 | 60 | 35 | F07, F10, F12 |
| MS80 | 1500 | 80:1 | 120 | 40 | F10, F12 |
| MS140 | 3600 | 140:1 | 160 | 60 | F14, F16 |
| MS200 | 6800 | 200:1 | 180 | 80 | F16, F25 |
