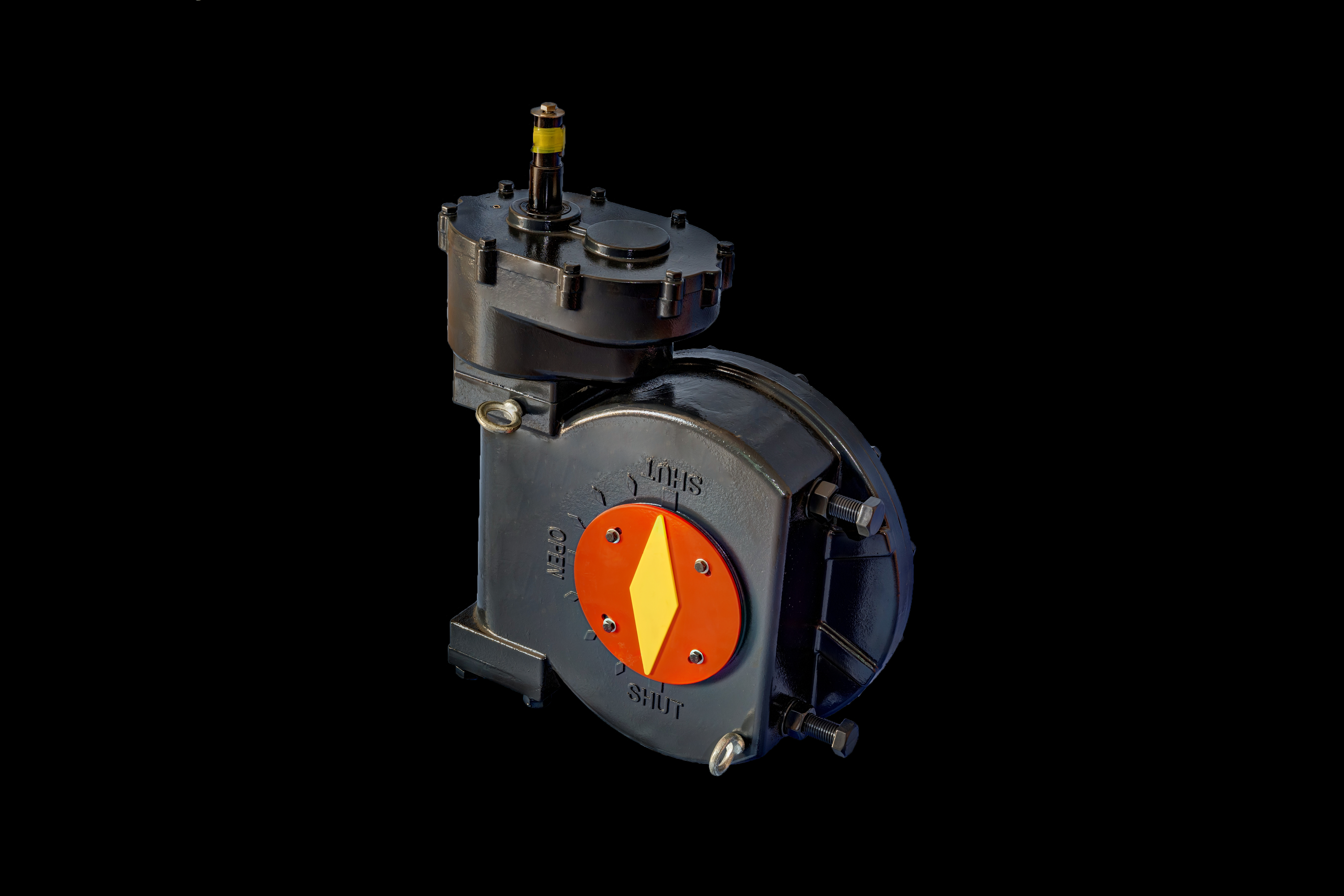

MX Double-Stage Gearbox

Compact & Lightweight: Designed for small volume and light weight for easy handling.
High Torque Output: Delivers large output torque for robust performance.
Reliable Self-Locking: Ensures dependable self-locking for safety and stability.
Enhanced M00 Model: Improved with a higher ratio for more convenient operation.
Versatile Application: Suitable for controlling butterfly valves, ball valves, plug valves, and other valves with 90° rotation.

Description

The product has small volume, light weight, reasonable structure, large output torque, and reliable self-locking. On the basis of M00, make reasonable improvement and appropriately increase the ratio to make the operation more convenient. It is applicable to the control of butterfly valve, ball valve, cock valve and other valves with 90 ° rotation

Model	Torque Nm	Ratio	Input Torque Nm	Max Bore	Flange Available	Handwheel	Weight Kg
MX16/S3	4400	169:1	110	75	F14, F16	500	36
MX36/S3	5200	176:1	135	80	F14, F16, F25	500	50
MX36/S4	6500	224:1	135	80	F14, F16, F25	500	55
MX40/S4	9500	290:1	155	110	F25, F30	600	86

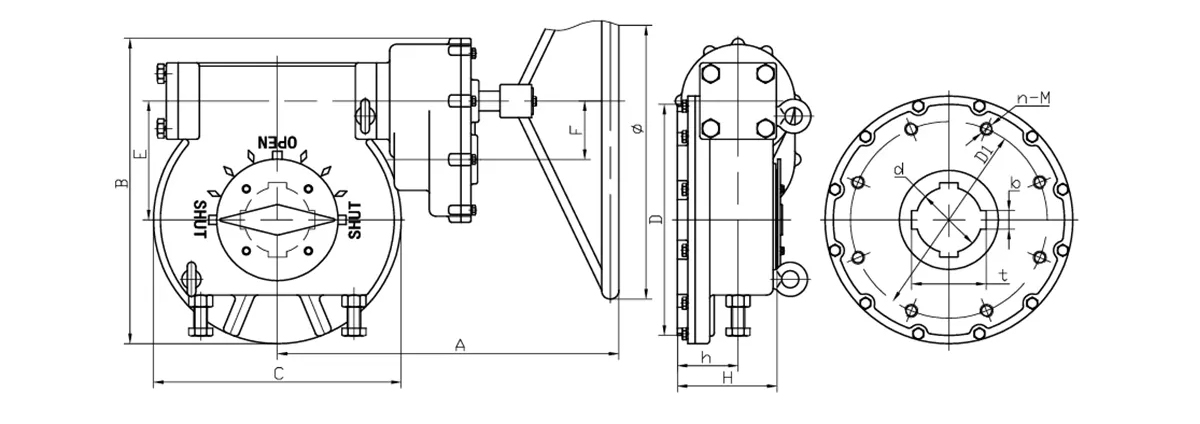

Model	d	b	t	D1	n-M	A	B	C	D	E	F	Φ	H	h
MX16/S3	55	16	63.6	165	4-M20	388	300	242	210	112	65	500	107	63
MX36/S3	65	16	73.6	254	8-M16	411	348	300	300	132	65	500	121	74
MX36/S4	80	22	90.8	254	8-M16	419	372	300	300	132	91	500	121	74
MX40/S4	80	22	90.8	254	8-M16	466	434	360	350	164	91	600	145	89

Model	Torque Nm	Ratio	Input Torque Nm	Max Bore	Flange Available	Handwheel	Weight Kg
MX40/D10	11000	444:1	125	110	F25, F30	600	90
MX50/D10	16000	495:1	160	110	F25, F30	600	105
MX60/D15	24000	845:1	150	160	F25, F30, F35	700	190
MX65/D15	32000	986:1	160	160	F25, F30, F35	700	220
MX65/D20	40000	1273:1	175	160	F30, F35, F40	700	260
MX70/D20	51000	1490:1	175	160	F30, F35, F40	700	290
MX85/D30	130000	2666:1	210	240	F40, F48, F60	800	800

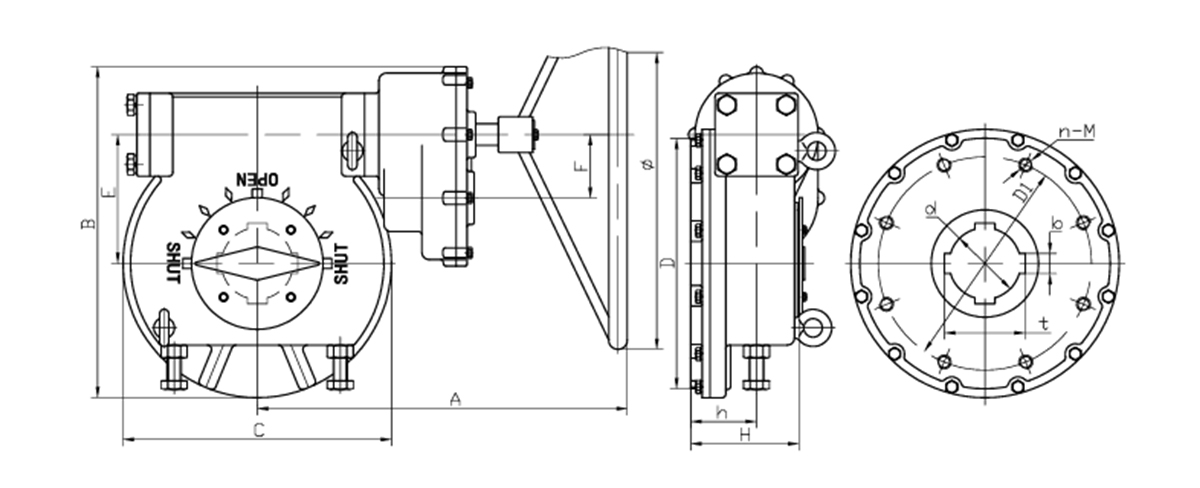

Model	d	b	t	D1	n-M	A	B	C	D	E	F	Φ	H	h
MX40/D10	80	22	90.8	254	8-M16	517	439	360	350	164	89	600	145	89
MX50/D10	80	22	90.8	254	8-M16	517	464	375	350	164	89	600	151	92
MX60/D15	100	32	124.8	298	8-M20	567	560	415	410	215	114	700	166	100
MX65/D15	100	32	124.8	298	8-M20	567	560	415	410	215	114	700	166	100
MX65/D20	130	36	166.8	406	8-M30	630	650	510	475	258	164	700	220	118
MX70/D20	130	36	166.8	406	8-M30	662	715	590	475	258	164	700	240	130
MX80/D30	180	45	200.8	483	12-M36	796	1090	830	686	402	181	800	273	147
