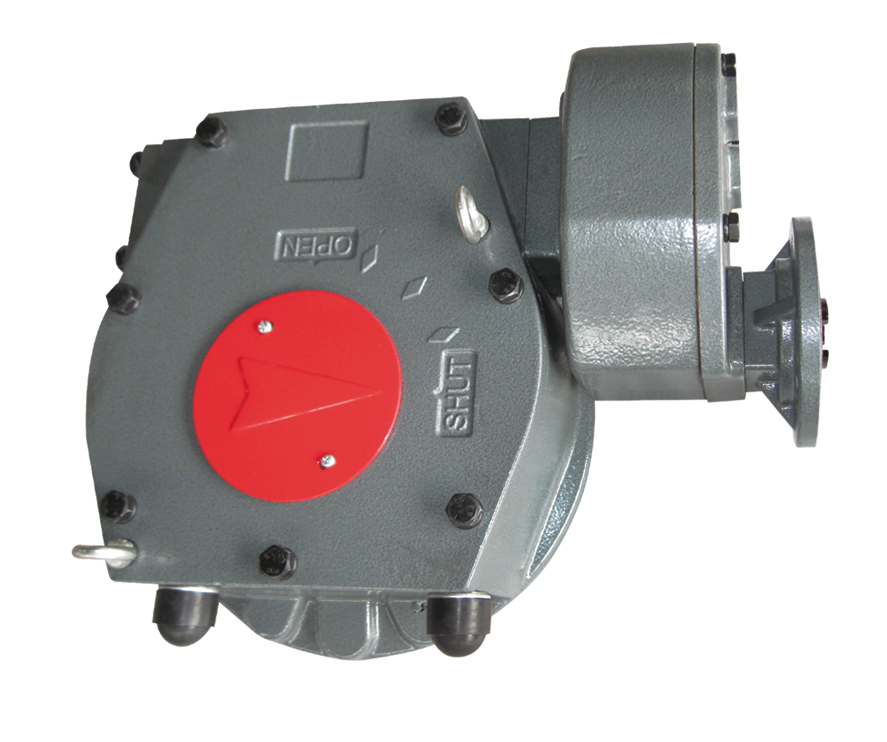

M00 Double-Stages Electric Actuator Operation

Electric Device Compatibility: Designed to be equipped with electric devices, reducing the size of electric actuators.
Worm Gear Drive: Utilizes a worm gear drive pair for efficient and smooth operation.
Reasonable Structure: Features a rational structure for enhanced reliability and performance.
Easy Assembly: Convenient to assemble for quick and hassle-free installation.
Reliable Self-Locking: Provides dependable self-locking to ensure secure operation.
Ideal for 90° Rotating Valves: Suitable for the electric control of butterfly valves, ball valves, plug valves, and other valves requiring 90° rotation.

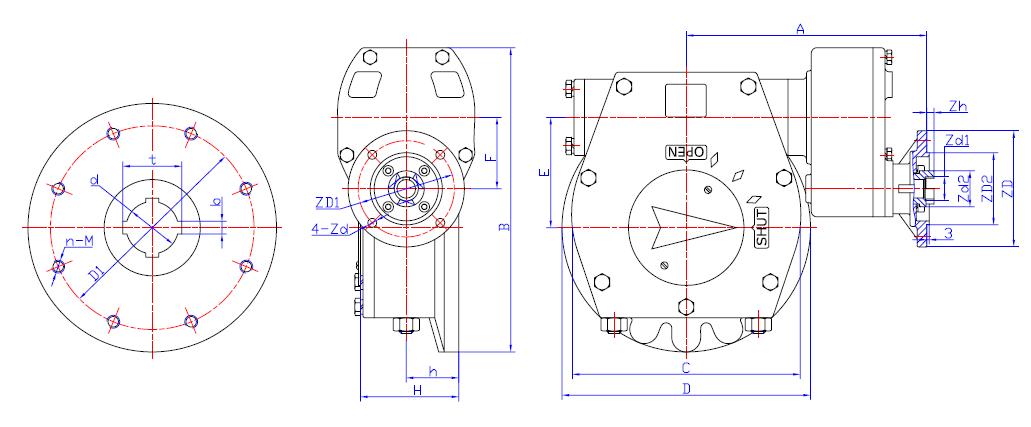

Description

Model	Rated Torque (Nm)	Speed Ratio	Input Torque (Nm)	Max Bore (mm)	Permitted Flange	Recommended Torque of Electric Actuators (Nm)
M36/S5-Z15	8000	210:1	180	85	F16, F25	150
M50/S5-Z15	11000	250:1	180	110	F25, F30	150
M50/D12-Z15	16000	612:1	190	110	F25, F30	150
M60/D12-Z20	24000	720:1	220	160	F30, F35	200
M65/D12-Z20	35000	882:1	230	160	F30, F35	200
M70/D18-Z20	50000	1242:1	200	160	F30, F35, F40	200
M75/D18-Z20	70000	1430:1	240	180	F35, F40	200
M80/D21-Z30	100000	1805:1	320	185	F35, F40, F48	300
M90/D28-Z30	160000	2430:1	320	185	F48, F60	300
