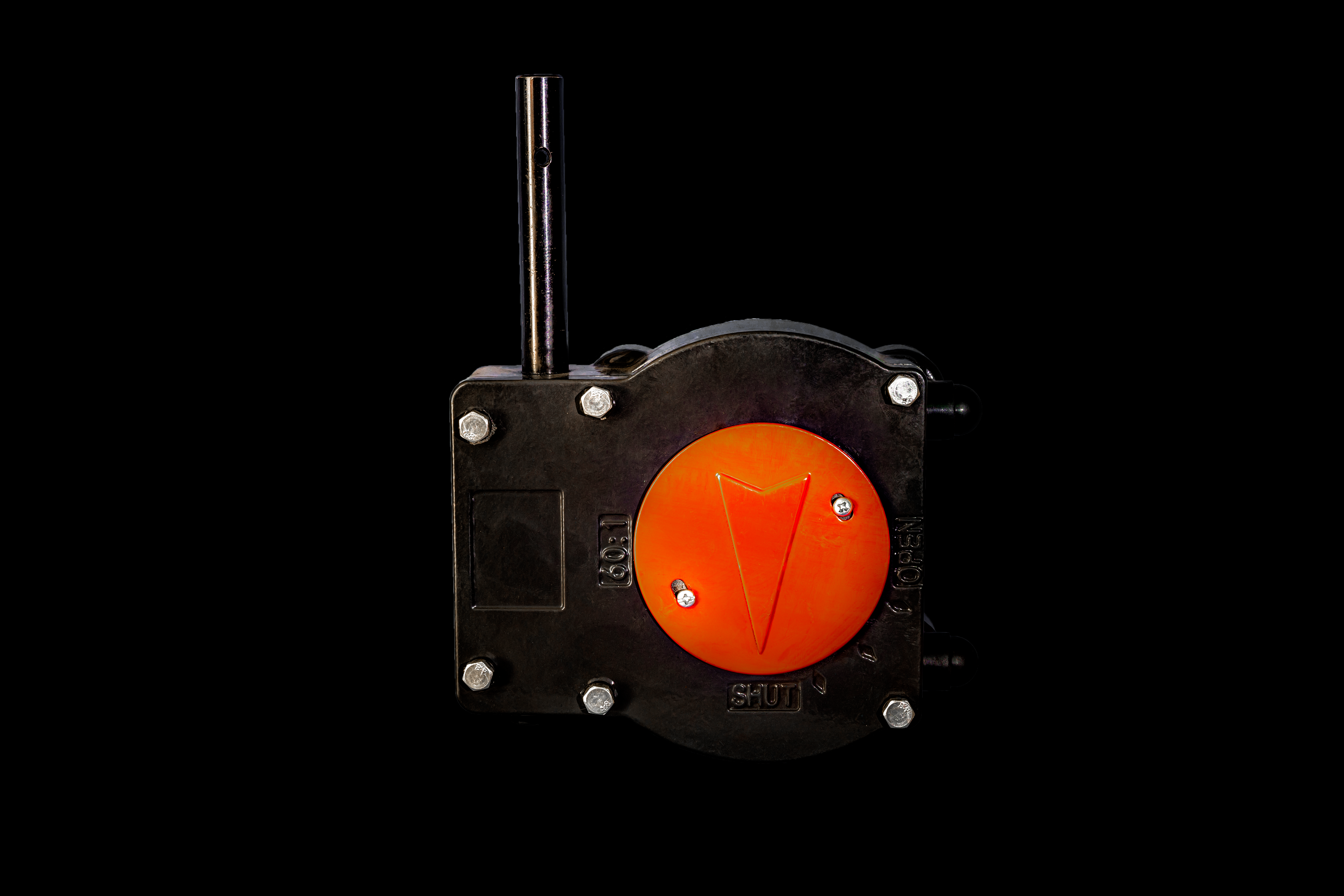

MX Single-Stage Gearbox

Compact & Lightweight: Features a small volume and light weight for easy handling and installation.
Reasonable Structure: Engineered with a rational structure for reliable performance.
High Output Torque: Delivers large output torque for powerful operation.
Reliable Self-Locking: Ensures secure and dependable self-locking.
Ideal for 90° Rotation Valves: Suitable for the control of butterfly valves, ball valves, plug valves, and other valves with 90° rotation.

Description

The product has small volume, light weight, reasonable structure, large output torque, and reliable self-locking. It is applicable to the control of butterfly valve, ball valve, cock valve and other valves with 90 ° rotation.

Model	Output Torque Nm	Ratio	Input Torque Nm	Max Bore	Flange Available	Handwheel Diameter	Weight Kg
MX07	160	32:1	23	20	F05, F07	140	2
MX08	300	40:1	34	25	F07, F10	200	3
MX10	650	42:1	70	30	F07, F10, F12	260	5.5
MX12	1200	42:1	125	40	F10, F12, F14	300	9.5
MX14	2000	60:1	150	60	F12, F14, F16	400	14
MX15	2800	70:1	185	65	F12, F14, F16	500	22
MX16	4000	88:1	200	80	F16, F25	500	38

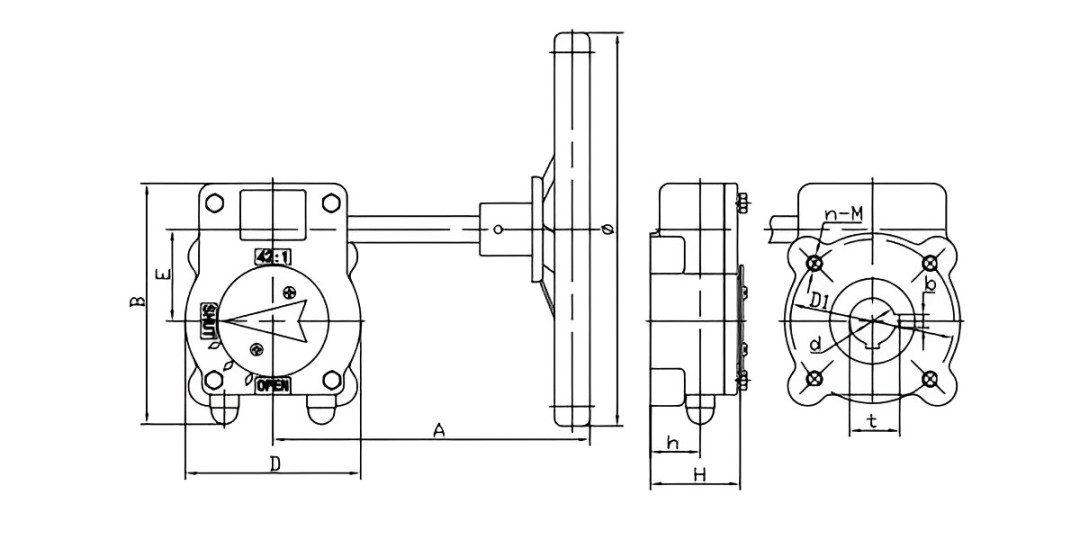

Outline Dimensions Table

Model	d	b	t	D1	n-M	A	B	D	E	Φ	H	h	H	h
MX07	15.9	5	18.2	50	4-M6	109	97	67	35	140	43.5	22.5	145	89
MX08	20	5	22.3	70	4-M8	140	115	80	41	200	52.5	30	151	92
MX10	25	8	28.3	102	4-M10	212	151	105	56	260	59.5	34	166	100
MX12	30	8	33.3	125	4-M12	242	184	134	70	300	68.5	38	166	100
MX14	35	10	38.3	140	4-M16	287	221	182	92.5	400	77	45	220	118
MX15	40	12	43.3	165	4-M20	302	252	210	105	500	98.5	66	240	130
MX16	55	16	59.3	254	8-M16	325	330	300	130	500	98.5	56	273	147
