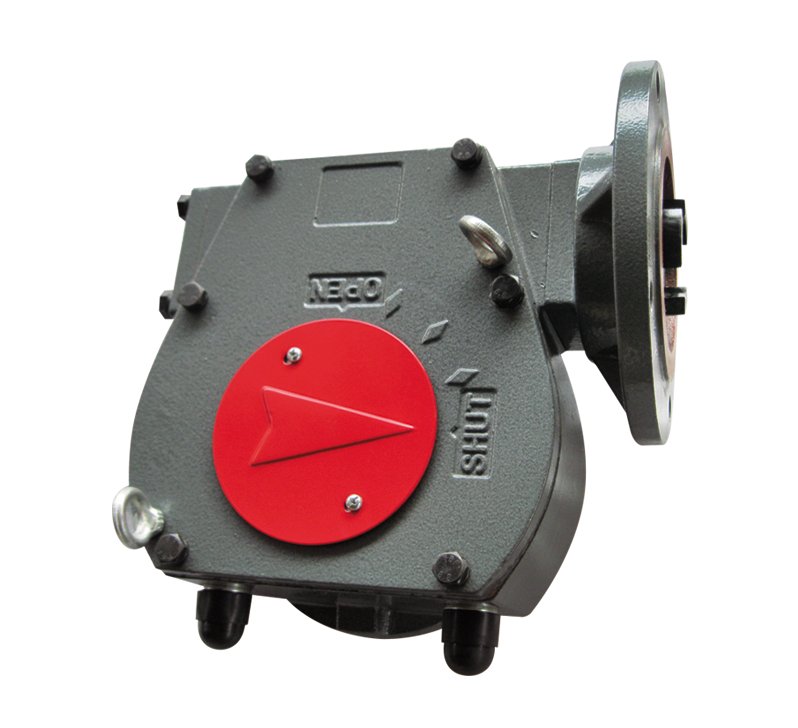

Description

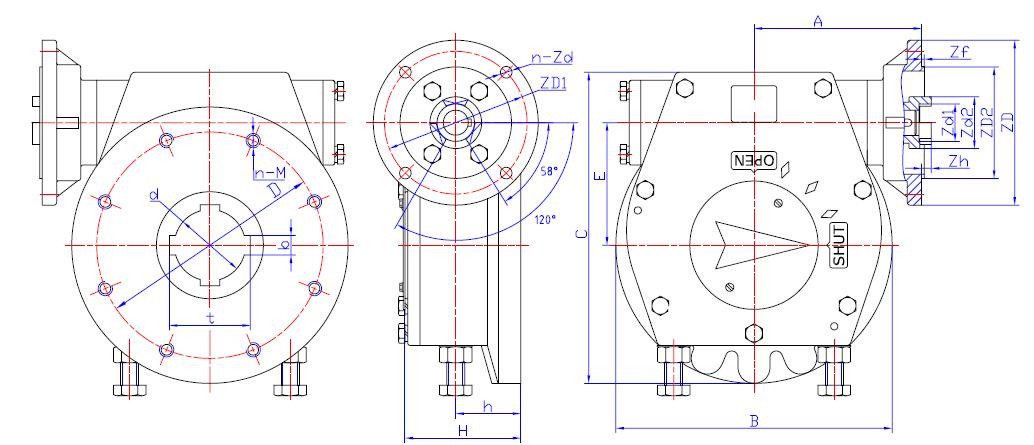

Connection Dimensions Table
| Model | ZD (mm) | ZD1 (mm) | n-Zd | ZD2 (mm) | Zf (mm) | Zd2 (mm) | Zd1 (mm) | Zh (mm) |
| M12-Z10 | 145 | 120 | 4-φ11 | 90 | 3 | 45 | 30 | 9 |
| M14-Z10 | 145 | 120 | 4-φ11 | 90 | 3 | 45 | 30 | 9 |
| M14A-Z10 | 145 | 120 | 4-φ11 | 90 | 3 | 45 | 30 | 9 |
| M16-Z30 | 185 | 160 | 4-φ13 | 125 | 3 | 58 | 42 | 11 |
| M36-Z45 | 225 | 195 | 4-φ18 | 150 | 3 | 72 | 50 | 13 |
| M50-Z45 | 225 | 195 | 4-φ18 | 150 | 3 | 72 | 50 | 13 |
| M50-Z90 | 275 | 235 | 4-φ22 | 180 | 3 | 82 | 62 | 15 |
| M60-Z120 | 275 | 235 | 4-φ22 | 180 | 3 | 82 | 62 | 15 |
| M65-Z120 | 275 | 235 | 4-φ22 | 180 | 3 | 82 | 62 | 15 |
| M70-Z250 | 330 | 285 | 4-φ22 | 220 | 4 | 98 | 72 | 17.5 |
| M75-Z250 | 330 | 285 | 4-φ22 | 220 | 4 | 98 | 72 | 17.5 |
| M80-Z350 | 380 | 340 | 8-φ22 | 280 | 4 | 118 | 80 | 21.5 |
| M90-Z500 | 380 | 340 | 8-φ22 | 280 | 4 | 118 | 80 | 21.5 |
| Model | d | b | t | D | n-M | A | B | C | E | H | h |
| M12-Z10 | 35 | 10 | 41.6 | 125 | 4-M12 | 114.5 | 150 | 181 | 70.5 | 88 | 41 |
| M14-Z10 | 40 | 12 | 46.6 | 140 | 4-M16 | 121.5 | 175 | 208 | 86 | 96 | 47 |
| M14A-Z10 | 50 | 14 | 57.4 | 165 | 4-M20 | 138 | 220 | 251 | 108 | 103 | 54 |
| M16-Z30 | 65 | 20 | 74.8 | 165 | 4-M20 | 172 | 250 | 281 | 124 | 113 | 57 |
| M36-Z45 | 80 | 22 | 90.8 | 254 | 8-M16 | 188 | 310 | 349 | 138 | 130 | 73 |
| M50-Z45 | 100 | 28 | 112.8 | 298 | 8-M20 | 235 | 355 | 439 | 181 | 160 | 80 |
| M50-Z90 | 100 | 28 | 112.8 | 298 | 8-M20 | 235 | 355 | 439 | 181 | 160 | 80 |
| M60-Z120 | 110 | 32 | 124.8 | 298 | 8-M20 | 268 | 463 | 528 | 237 | 165 | 82 |
| M65-Z120 | 110 | 32 | 124.8 | 298 | 8-M20 | 300 | 558 | 572 | 282 | 172 | 84 |
| M70-Z250 | 120 | 32 | 134.8 | 356 | 8-M30 | 344 | 610 | 657 | 309 | 225 | 107 |
| M75-Z250 | 150 | 36 | 166.8 | 406 | 8-M36 | 364 | 692 | 697 | 349 | 231 | 110 |
Technique Parameters
| Model | Torque (N·m) | Ratio | Input (N·m) | Max Bore | Mounting Flange (min/max) | Recommended Torque (N·m) |
|---|---|---|---|---|---|---|
| M12-Z10 | 1000 | 35:1 | 95 | 40 | F10, F12 | 100 |
| M14-Z10 | 1800 | 45:1 | 130 | 50 | F12, F14 | 150 |
| M14A-Z10 | 2500 | 60:1 | 140 | 60 | F14, F16 | 300 |
| M16-Z30 | 4400 | 50:1 | 290 | 85 | F14, F16 | 300 |
| M36-Z45 | 8000 | 57:1 | 460 | 85 | F16, F25 | 600 |
| M50-Z45 | 11000 | 68:1 | 490 | 110 | F25, F30 | 1000 |
| M50-Z90 | 11000 | 90:1 | 790 | 110 | F25, F30 | 1200 |
| M60-Z120 | 24000 | 68:1 | 1100 | 160 | F30, F35 | 2500 |
| M65-Z120 | 35000 | 98:1 | 1500 | 160 | F30, F35 | 2500 |
| M70-Z250 | 50000 | 66:1 | 2500 | 180 | F30, F35, F40 | 2500 |
| M75-Z250 | 70000 | 78:1 | 3000 | 185 | F35, F40, F48 | 3500 |
| M80-Z350 | 90000 | 84:1 | 3900 | 185 | F35, F40, F48 | 3500 |
| M90-Z500 | 160000 | 86:1 | 6000 | 240 | F48, F60 | 5000 |
