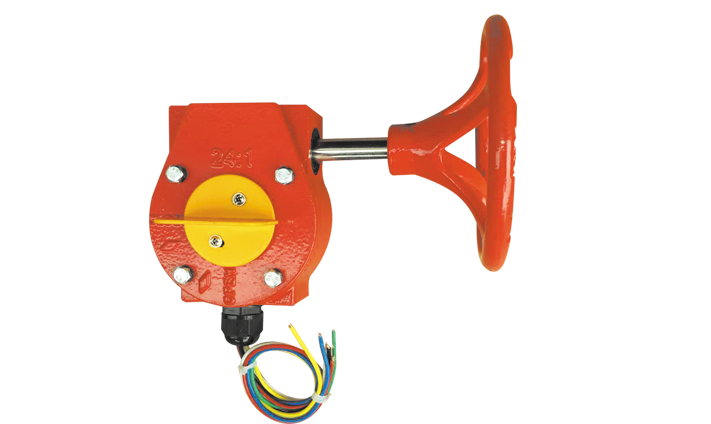

Description
Technical Parameters

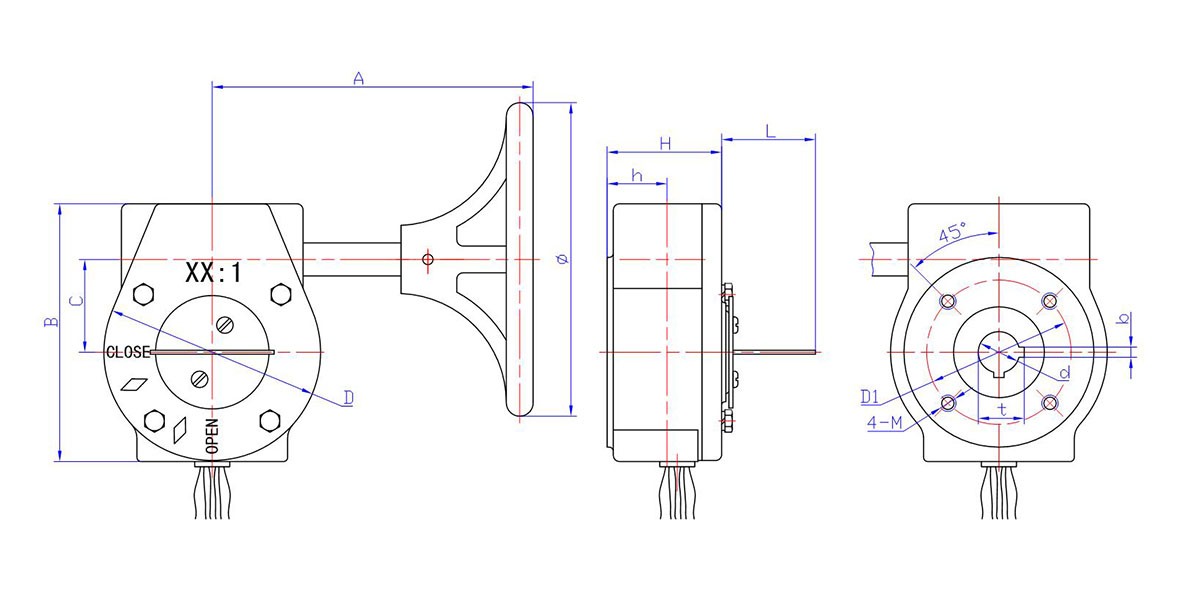

| Model | Max Torque (N·m) | Ratio | Available Opening of Butterfly Valve (Metric System) | Available Opening of Butterfly Valve (British System) | d (mm) | b (mm) | t (mm) | D1 (mm) | Bolts (4-M) | A (mm) | B (mm) | C (mm) | D (mm) | Φ (mm) | H (mm) | h (mm) | L (mm) |
| 3D-15 | 170 | 24:1 | 50-80 | 2″–3″ | 12.7 | 3 | 14.1 | 50 | 4-M6 | 156 | 125 | 45 | 105 | 150 | 58 | 29 | 46 |
| 3D-15 | 100 | 24:1 | 100 | 4″ | 15.9 | 5 | 18.2 | 70 | 4-M8 | 156 | 125 | 45 | 105 | 150 | 58 | 29 | 46 |
| 3D-30 | 250 | 30:1 | 125-150 | 5″–6″ | 19.05 | 5 | 21.35 | 70 | 4-M8 | 240 | 167 | 63 | 142 | 300 | 69 | 35 | 46 |
| 3D-50 | 750 | 30:1 | 200 | 8″ | 22.2 | 5 | 24.5 | 102 | 4-M10 | 240 | 167 | 63 | 142 | 300 | 69 | 35 | 46 |
| 3D-50 | 250 | 30:1 | 250 | 10″ | 28.6 | 8 | 31.9 | 102 | 4-M10 | 240 | 167 | 63 | 142 | 300 | 69 | 35 | 46 |
| 3D-120 | 1200 | 50:1 | 300-350 | 12″–14″ | 31.8 | 8 | 35.1 | 125 | 4-M12 | 229 | 190 | 78 | 156 | 300 | 73 | 38 | 47 |
