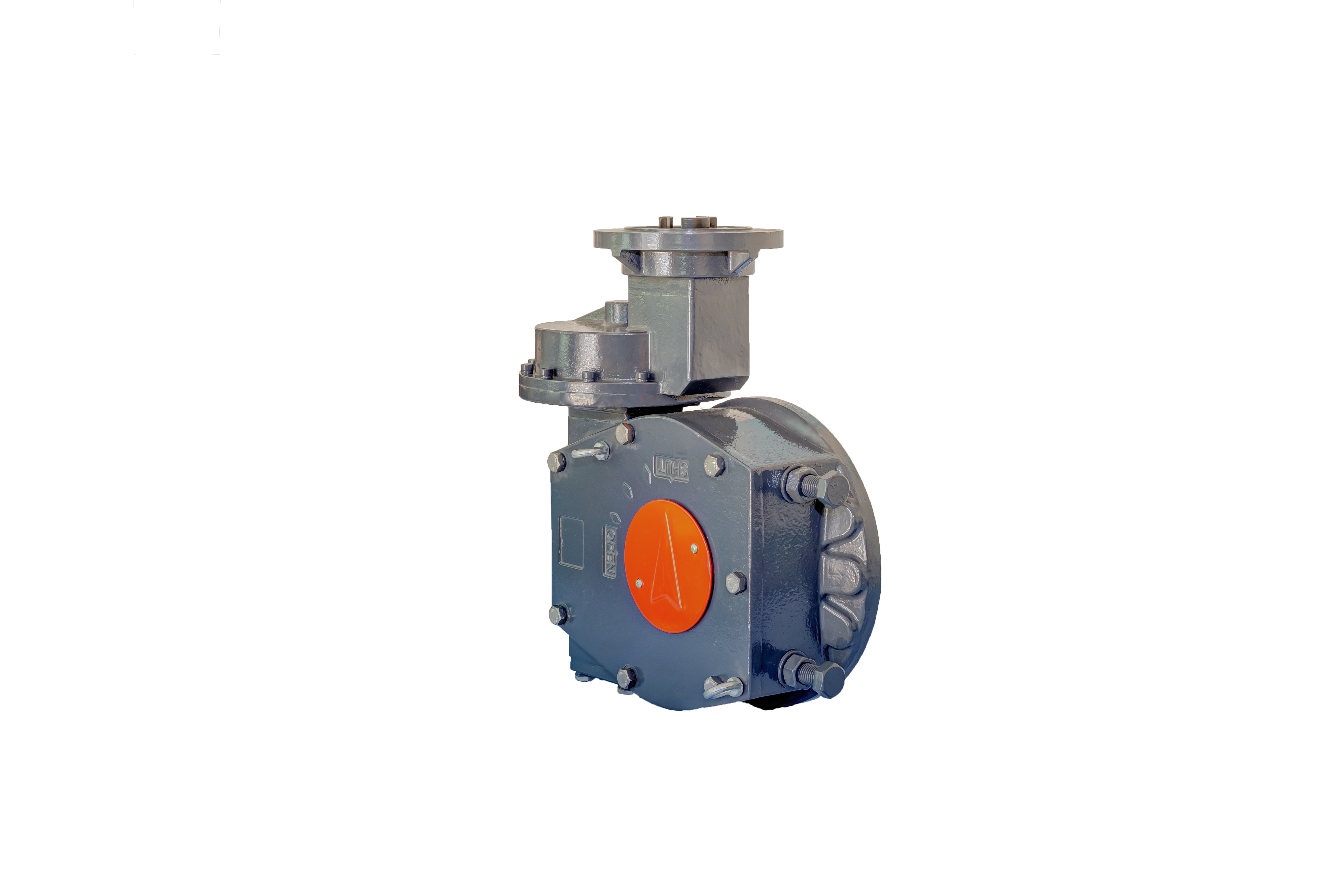

M00 New Model for Electric Actuator Operation

Designed for Electric Actuators: This product is specifically designed to work with electric devices, allowing for a reduction in electric head size.
Worm Gear Transmission: Utilizes a worm gear and worm wheel drive for a reasonable structure and easy assembly.
Reliable Self-Locking: Features dependable self-locking for secure operation.
Ideal for 90° Rotation Valves: Perfect for electric control of butterfly valves, ball valves, and plug valves with 90° rotation.

Description

Model	Rated Torque (Nm)	Ratio	Input Torque (Nm)	Max Bore (mm)	Mounting Flange	Suggested Electrical Device Torque (Nm)	Optional Ratio 1	Input Torque 1 (Nm)	Optional Ratio 2	Input Torque 2 (Nm)	Optional Ratio 3	Input Torque 3 (Nm)
M36S-Z15	8000	232:1	150	110	F16, F25	150	150:1	225	304:1	110
M50S-Z20	16000	277:1	240	110	F25, F30	200	178:1	370	363:1	285
M60S-Z30	24000	325:1	300	160	F30, F35	300	210:1	470	427:1	230
M65S-Z30	35000	399:1	360	160	F30, F35	300	257:1	560	523:1	270
M70S-Z60	50000	338:1	620	160	F30, F35, F40	600	209:1	1000	261:1	800	506:1	420
M75S-Z60	70000	389:1	750	180	F35, F40	600	241:1	1250	301:1	970	583:1	500
M80S-Z90	100000	389:1	1070	185	F35, F40, F48	900	237:1	1760	291:1	1430	558:1	750
M90S-Z120	160000	399:1	1650	240	F48, F60	1200	243:1	2740	298:1	2240	572:1	1150
